Water Heater Circulation Pump D01

Water Heater Circulation Pump D01 Features: • Large flo […]

Product Parameters:

Voltage:24V

Max Flow:29L/min

Max Water Head:12M

Categories:

Brushless DC Pump, Hot Water Circulation Pump, Water Heater Pump

Catalog Get Sample

• Overview



  Water Heater Circulation Pump D01 Features:

  • Large flow rate, high pressure
  • High-efficiency motor and rotor design, 30% higher efficiency than similar products
  • Low noise < 42dB, 3~5dB(A) lower under the same performance
  • No leakage, more reliable
  • Long lifetime >20000hour



  Water Heater Circulation Pump D01Application:



  ● “Zero Cold Water” Water Heater
  ● Gas Water Heater
  ● Electric Instant Water Heater
  ● Heating System, Gas Boiler Heat Pump
  ● Radiant Floor Heating, Wall-hung Boiler
  ● Wall-mounted solar water heater
  ● Dedicated pump for pressure-bearing water tanks
  ● Engineering separated type water heater
  ● Pressure-bearing piping



  Water Heater Circulation Pump D01 Specification:

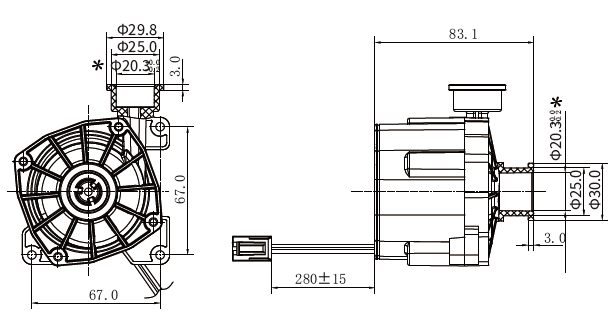

  Dimension(mm)&Curve:

• Customization

  1. /PWM or /5V speed control
  2. /FG (RPM) signal wire
  Cumulatively provide customized services for 100+ well-known brands around the world
  Provide customers with professional customized solutions
  For other customization, please contact us ！
